Adding a Web Folder Source

A Web Folder Source connects to your existing folder of assets that are on a publicly addressable website, usually your website’s existing asset folder. If authentication is required, you can configure your Web Folder Source to send authorization headers to your Origin.

Setting Up Your Web Folder Source

1. Go to the Sources page in the Imgix dashboard and click the New Source button.
2. Select Web Folder from the How do you store your media? radio options.

3. Specify the Base URL for your Web Folder Source - you must use a valid web URL that we can fetch from.

Note: To improve deliverability, you should use a path that will not redirect. For example, if your domain will redirect traffic from http to https, you should use https in your Base URL configuration.

5. Name the Subdomain you’d like to use as the base URL for your assets.



6. Click the Deploy Source button on Step #3 to queue your Source for deployment.

Accepted Base URLs

Your Base URL must be accessible by Imgix in order for us to fetch assets from your Web Folder Origin. If your Web Folder URL blocks Imgix from accessing your assets or requires a login to access assets, we will fail to fetch your assets from your Origin.

If your Web Folder Origin has a firewall, please add the Imgix user-agent to your allowlist.

Additionally, Web folder URLs must be valid and follow the RFC spec. We use these rules for validating Base URLs:

• Each level (split by a dot) may contain up to 63 characters.
• The full domain name may have up to 127 levels.
• The full domain name may not exceed the length of 253 characters in its textual representation.
• Each label can consist of letters, digits and hyphens.
• Labels cannot start or end with a hyphen.
• The top-level domain (extension) cannot be all-numeric

Authenticating Requests to Your Origin

As an optional configuration step, you can set up authentication for Imgix to securely fetch assets from your Origin. There are three available options: Basic Authentication, Custom Header Authentication, and Per-Request Signing.

Once configured, Imgix will include additional headers in the request to your Origin. These header values can authenticate requests from our service, and can be configured in your dashboard.

Here is an example header sent from a Web Folder Source with Origin Authentication configured:

{
  "headers": {
    "Authorization": "Basic <base_64_encoded_username_password>",
    "X-Imgix-Signature": "<your_signature>",
    "X-Imgix-Signature-Host": "<origin_host>",
    "X-Imgix-Signature-Request-Id": "<request_id>",
    "X-Imgix-Signature-Timestamp": "<timestamp>"
  }
}

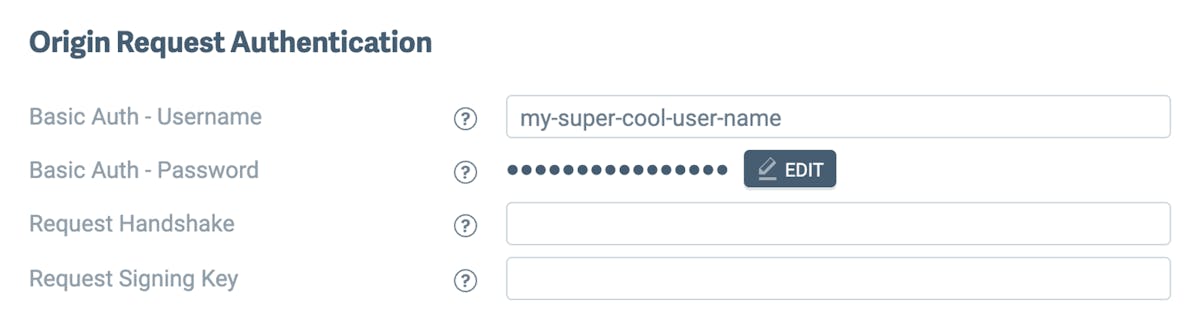

• Basic Auth - Username: Username for basic authentication. Cannot contain the colon symbol (:) symbol or control characters as per the RFC 5234 specification
• Basic Auth - Password: Password for basic authentication. Cannot contain the colon symbol (:) symbol or control characters as per the RFC 5234 specification
• Request Handshake: Accepts up to 256 characters. See Custom Header Authentication.
• Request Signing Key: Accepts up to a 32 character string with latin-1 characters. Can be generated using a bash command like openssl rand -base64 24. Used to generate a signature that will be sent as a header to your server. See Per-Request Signing.

Basic Authentication

Basic authentication is the easiest method to authenticate requests from the Imgix service to your Origin. By specifying a username, Imgix will include a Basic Authentication header in requests to your Origin. An example request looks like this:

"Authorization": "Basic dXNlcm5hbWVfZXhhbXBsZTpwYXNzd29yZF9leGFtcGxl"

In the example, dXNlcm5hbWVfZXhhbXBsZTpwYXNzd29yZF9leGFtcGxl is Base64 decoded to username_example:password_example.

The username and password values must not contain a colon, as the colon is reserved for separating the username and password in the Basic Authentication header. Additionally, the username and password MUST NOT contain any control characters as per the RFC 5234 specification.

Custom Header Value/Handshake Token

Another authentication method is to configure a request_handshake value in your Source settings. The request_handshake value gets sent in a request to your Origin as a header called X-Imgix-Origin-Secret, and accepts a string with up to 256 characters. This can be used as a way to set up custom authentication by checking for the presence of this header/value in requests to your Origin.

A request to your Origin with this header value will look like this:

"X-Imgix-Origin-Secret": "custom_origin_secret_value"

Per-Request Signing

An even more secure method is Per-Request signing. This allows you to use a request_signing_key to authenticate requests to your Origin. Note that while this is the most secure method available, it requires additional configuration outside of Imgix in order to decrypt and authenticate the credentials.

The request_signing_key value accepts 32 latin-1 characters.

This will take a secret 32-character value and generate an HMAC-SHA256 digest signature on the request sent from Imgix that can be verified to authenticate that the requests are coming from Imgix.

When configured, Imgix will include the following headers in requests to your Origin:

• X-Imgix-Signature-Timestamp: Unix epoch seconds
• X-Imgix-Signature-Request-Id: An Imgix generated id for each request
• X-Imgix-Signature: A version tag (v1) followed by the HMAC-SHA256 digest (all uppercase hex values) of the message <requestid>.<timestamp>.<host>.<url path> signed with the secret key given to the endpoint.

Here is an example request sent from imgix:

"X-Imgix-Signature": "v1,92b7abfb7adc9290d1f1f64d91c11a27e35126ed8c20d1cf5a45f3e8c9fc03f6",
"X-Imgix-Signature-Host": "www.examplesite.com",
"X-Imgix-Signature-Request-Id": "a3c1f07cd7f9dc17fe9352dd391aa052f90ba51df95231f09fadc760b8457564",
"X-Imgix-Signature-Timestamp": "1709332618"

You can then verify that the request is coming from Imgix by generating the HMAC-SHA256 digest of the message <requestid>.<timestamp>.<host>.<url path> with the secret key you have configured. Here is an example using the Node.js crypto module combined with the Imgix headers above:

const crypto = require("crypto")

var imgix_headers = {
  "X-Imgix-Signature":
    "v1,92b7abfb7adc9290d1f1f64d91c11a27e35126ed8c20d1cf5a45f3e8c9fc03f6",
  "X-Imgix-Signature-Host": "www.examplesite.com",
  "X-Imgix-Signature-Request-Id":
    "a3c1f07cd7f9dc17fe9352dd391aa052f90ba51df95231f09fadc760b8457564",
  "X-Imgix-Signature-Timestamp": "1709332618",
  "url-path": "/example_url.png",
}

// your secret key
var secret = "abcd1234"

// Create HMAC using SHA256 algorithm
const hmac = crypto
  .createHmac("sha256", secret)
  .update(
    imgix_headers["X-Imgix-Signature-Request-Id"] +
      "." +
      imgix_headers["X-Imgix-Signature-Timestamp"] +
      "." +
      imgix_headers["X-Imgix-Signature-Host"] +
      "." +
      imgix_headers["url-path"],
  )

// Get the HMAC in hexadecimal format
const hmacDigest = hmac.digest("hex")

// compare the rqeuest
if ("v1," + hmacDigest === imgix_headers["X-Imgix-Signature"]) {
  console.log("Request is from Imgix")
} else {
  console.log("Request is not from Imgix")
}

Authenticating Requests to Your Origin

See the Advanced Source Settings for information about setting up custom domains, defaults, and cache TTL options.
