Advanced Settings

The Source Details page shows you your Source’s current status and additional settings that can be configured. The Status field should change from Queued to Deployed within seconds of creating your Source. Once this happens, your Source is ready to use.

If you want to adjust the settings on this page, click the Edit button, edit the fields you want to change and click Review and Deploy to update your Source configuration. Most fields are self-explanatory, but you can hover over the (?) icons to get more detail.

Changing Source Type

Sources already created as a single Source type can be changed to a different type anytime. Configuration settings such as the domain, default parameters, default images, and cache TTL settings will remain the same, but you will need to change the respective method of connecting imgix to your Origin assets depending on the new Source type.

1. On the Source Details page, click Edit.
2. Open the dropdown menu next to Source Type.
3. Select the Source Type that you are switching to.
4. Review and implement any specific settings (access keys, base URLs) to successfully redeploy the Source with the new type.
5. Click the Review & Deploy button once your settings are configured to redeploy the Source with the new Source type.

Custom Domains

If you want to use a custom domain as the base URL for your Source, you can add one. The standard subdomain and the custom will resolve to the same Origin Image. You can add up to 100 imgix subdomains and custom domains.

1. On the Source Details page, click Edit.
2. Under “Domains”, click Custom Domain (on mobile devices, click Add Domain first).
3. Enter the custom subdomain you’d like to use and click the Review & Deploy button to redeploy your Source with the new custom domain.
4. Go to your DNS registrar and configure your DNS settings to ensure that the CNAME points to the new *.imgix.net hostname, where * is the subdomain of the Source you’re using in imgix. See the example CNAME record setup in Google Domains below.
5. Wait until the DNS propagates your new changes. Depending on your DNS provider, this can take up to 24 hours.

All standard hostnames powered by imgix (e.g., subdomain.imgix.net) automatically support secured transport (SSL/TLS).

Note: By default, you can only use the custom subdomain with HTTP. Using HTTPS requires an SSL certificate through our CDN partner and is currently only available to customers on Premium plans. If you are a Premium user, please contact your Account Manager or contact Support to set this up. See the Securing Assets guide for more detailed information.

Default and Error Images

Your Source comes equipped with some basic error-proofing, allowing you to set an image that appears in place of a missing asset or one with an error. This way, even if the asset has a problem, it will not appear blank. When using the Rendering API to serve an image, you can also apply parameters from the original image request to the default or error image.

To add either a default image or an error image:

1. On the Source Details page, click Edit.
2. Under “Image Defaults,” click on the appropriate field and enter the URL for your image.
3. If you want to apply the defaults from the original image request, click the check box under the image field.
4. Click the Review & Deploy button to redeploy your Source with the new settings.

The Default Image and the Error Image settings have different behaviors that may affect your usage quotas. Continue reading below.

Default Image

If a Default Image is set, it will change the behavior of 404’s for your Source. When this is enabled, any request that would typically result in a 404 will instead return a 200 response along with the image you’ve specified.

This is useful if you rely on receiving a 200 response along with a default image on every request, regardless of whether or not an image exists.

If Default Image and Error Image are configured, Default Image will override Error Image whenever a request would result in a 404 error.

Since the response is converted to a 200 response, this request will be counted towards your monthly Origin Image usage quotas, which are based on your asset file paths. To ensure that you do not exceed your usage quotas, we recommend limiting the number of requests going to non-existent assets.

Error Image

If Error Image is enabled, imgix will continue to return the appropriate error code for assets that generally result in an error (4xx, 5xx, etc.) while returning the image specified in your Error Image configuration.

Unlike Default Images, the error response is preserved. Any asset that triggers an error image to display will not count against your quota, including 404s.

If Default Image is enabled, it will override your Error Image setting whenever a request results in a 404 error. In this scenario, the response will be converted to 200, which will count against your monthly usage quotas.

Note: If you have configured an error image and need to change or remove this setting, it may take up to 6 hours for the change to take effect. If you need it cleared faster, please reach out to support@imgix.com.

Default Parameters

If you have a baseline level of image optimization you’d like to apply to all of your images; you can specify default parameters at the Source level.

Note: ch cannot be set as default parameters due to how it interacts with our caching infrastructure.

1. On the Source Details page, click Edit.
2. Under Image Defaults, choose a parameter from the dropdown menu and provide the value. Add as many parameter/value pairs as possible to set your defaults.
3. Click the Review & Deploy button to redeploy your Source with the new settings.

Default parameters will cause all images in a Source to go through our imgix rendering service. This will disable the default functionality for serving images as pass-throughs. If you are serving PDFs or omitting parameters to serve images in their original quality/size in your Source, applying default parameters will affect the default behavior of those assets.

For more information about default parameters, how to override them, and recommended uses, check out this blog post.

Cross-Domain Policy File

If your website or app requires a Cross-Domain Policy file to serve your assets across domains correctly, you can enable it in the Dashboard by clicking the check box under Security settings:

When enabled, imgix will serve the following file to any client that requests it:

<?xml version="1.0"?>
<!DOCTYPE cross-domain-policy SYSTEM "http://www.adobe.com/xml/dtds/cross-domain-policy.dtd">
<cross-domain-policy>
    <site-control permitted-cross-domain-policies="all" />
    <allow-access-from domain="*" secure="false"/>
</cross-domain-policy>

Cache Settings

Your cache settings determine how long the assets and derivative images generated by imgix will live in the end user’s browser cache. We generally recommend setting the TTL (or “time-to-live”) value to at least one year since the Origin Images are unlikely to change in that time. This way, the assets are more likely to be served from the user’s local cache instead of being regenerated from the Origin Image or served from intermediate caches in the imgix system, giving users faster page loads and lowering your bandwidth costs.

The maximum value for the Default Cache TTL is one year. The minimum value is 30 minutes.

For more information on TTLs, see Wikipedia.

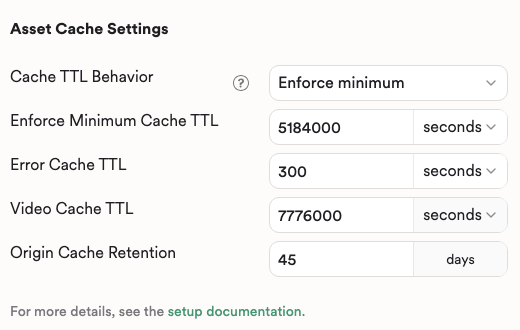

The Cache TTL Behavior dropdown determines how imgix interacts with any Cache-Control: max-age headers on your Origin Images. It has three options with corresponding TTL values:

• Respect origin: Respects the Cache-Control: max-age header if present and applies one with the Default Cache TTL value if not present.
• Override origin: If a header is present, it overrides the Cache-Control: max-age header with the Override Cache TTL value, or it applies one with that value if it is not present.
• Enforce minimum: If a header is not present, a Cache-Control: max-age header with the Minimum Cache TTL value is applied; if the existing header’s value is lower than the Minimum Cache TTL value, it is overridden.

In addition to setting the default behavior and value for asset caching, you can also set a Cache-Control: max-age header for the default error image (if you have set one). This value should be short so that the error image doesn’t continue to display after the error has been resolved.

Here’s how to set your TTL values.

1. On the Source Details page, click Edit.
2. Under “Cache Settings”, choose the Cache TTL Behavior you prefer from the dropdown.
3. Type in a time value for the TTL you want to change and choose the time units from the dropdown menu.
4. Click the Review & Deploy button to redeploy your Source with the new cache settings.

We will do our best to cache your assets and derivative images as long as you specify. However, the sheer number of possible image permutations that imgix enables you to create makes it impossible to perfectly cache all your derivative images forever.

At times, we may evict image derivatives from the cache and re-render them as necessary. We will not bill you for derivative images that are evicted and re-rendered before the lesser of their intended cache timeout or 30 days.

We also recommend setting Cache-Control: max-age=31536000 headers on all assets when you add them to your asset storage. This will help reduce cache misses for files that imgix doesn’t process (like CSS) and also prevent it from re-fetching assets it does process from Origin. If you need to update files that are already there, you can run a script like s3cmd (for Amazon S3) to set the header after uploading.

For more information on general caching strategy and its interaction with imgix, see our Fingerprinting Images guide.

Asset Manager Asset Exemption

Using the Asset Manager Asset Exemption, you can specify which folders you want to be included or excluded from your Asset Manager. This controls which assets are shown in Asset Manager.

The default behavior is set to crawl all media and subdirectories in your Source’s base path prefix.

For video specifically, it controls which videos will get encoded by the Video API.

Our service regularly crawls video API-enabled sources to identify encodable video assets, which will incur egress bandwidth usage at your origin provider.

To manage your egress bandwidth, it’s highly recommended that you configure and organize your video paths to allow crawling only of videos meant to be served by the Video API.

Disabling, Enabling, or Deleting a Source

You can disable, enable, or delete a Source by hovering over the settings icon at the top right of your Source view page. The option to disable/enable/delete will be revealed depending on the current Source status.

A disabled or deleted Source will continue to serve assets from the cache until the assets TTL expires or unless they are purged.
